Injection Molding Tolerance & Dimensional Accuracy Standards (2025 Update)
Choose materials and processes based on precision requirements:
Material | Typical Tolerance (± mm) | Shrinkage Rate | Best For | ISO Standard |
|---|---|---|---|---|
ABS | 0.1-0.3 mm | 0.4-0.7% | Consumer electronics | ISO 20457-1:2025 |
Polycarbonate | 0.05-0.2 mm | 0.5-0.8% | Optical components | ASTM D3641-2025 |
Nylon (GF30%) | 0.15-0.4 mm | 0.2-0.5% | Structural parts | ISO 294-4:2025 |
Liquid Silicone | 0.02-0.1 mm | 0.1-0.3% | Medical devices | ISO 80369-7:2025 |
Mold Precision:
Hardened steel molds achieve ±0.01 mm repeatability (vs. ±0.05 mm for aluminum).
Multi-cavity molds require 0.005-0.02 mm alignment accuracy.
Process Control:
AI-driven pressure/temperature monitoring reduces warpage by 40%.
Real-time viscosity sensors maintain melt consistency within ±3%.
Post-Processing:
CNC trimming improves hole position accuracy by 20-35%.
Thermal annealing reduces internal stress-induced distortion (<0>
Critical Features:
Threads: Add 0.1-0.3 mm oversize to core pins (compensate for shrinkage).
Ribs: Keep thickness ≤60% of adjacent walls to prevent sink marks.

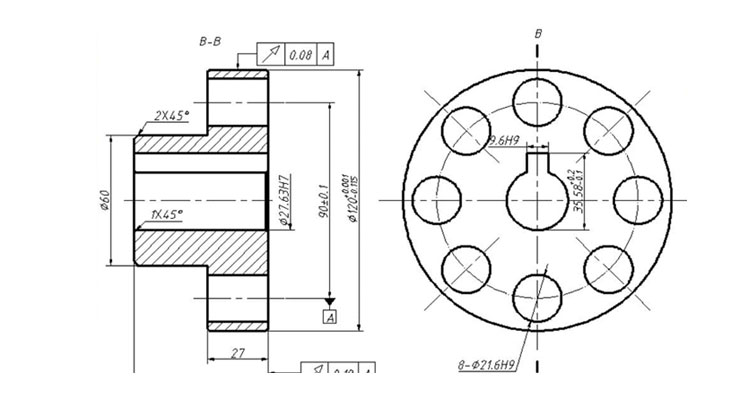

Tolerance Stacking:
Multi-component assemblies: Apply ±0.15 mm cumulative tolerance (per ISO 14405-2:2025).
Interference fits: Design with 0.02-0.05 mm/mm gradient for temperature shifts.
Self-Calibrating Molds: Embedded sensors auto-adjust cooling channels for ±0.03 mm accuracy across batches.
Bio-Based Polymers: Low-shrinkage PLA variants achieve ±0.1 mm tolerance (certified to ISO 22000:2025).
Hybrid Molding: Combines overmolding and in-mold metrology for ±0.02 mm microfluidic channels.
Precision Class | Tolerance (± mm) | Application Examples |
|---|---|---|
High-Precision | ≤0.05 | Implantable devices, lenses |
Commercial | ≤0.15 | Connectors, automotive interiors |
Prototype | ≤0.3 | Concept models, non-critical parts |
